HORIZONTAL
ASSEMBLY PRESS
Designed for stable, controlled pressing when vertical presses aren’t practical.
- Ideal for long or difficult to orient parts
- Reduce setup time and simplify handling of long parts
- Configurable length and tooling for your application
HORIZONTAL
ASSEMBLY PRESS
Designed for stable, controlled pressing when vertical presses aren’t practical.
- Ideal for long or difficult to orient parts
- Reduce overall setup time
- Configurable length options
- Quick-change tooling support
- Simplify handling of long workpieces
WHEN VERTICAL PRESSING
DOESN'T WORK
Long parts, awkward assemblies, and ergonomic issues can slow down production and lead to poor quality. Traditional vertical presses often aren’t the right fit for long parts.
- Parts too long or unstable for vertical presses
- Difficulty maintaining alignment during pressing
- Ergonomic issues and awkward part handling
A HORIZONTAL APPROACH
TO PRESS-FIT ASSEMBLY
Our horizontal assembly press is designed to improve alignment, control and ease of use when working with long or difficult parts.
IMPROVE
ALIGNMENT
SAVE TIME &
INCREASE OUTPUT
INCREASE
CONSISTENCY
Common Applications: End Cap Installation | Bearing Press Fits | Shaft Assembly | Long Component Assembly.
WHEN VERTICAL PRESSING
DOESN'T WORK
Long parts, awkward assemblies, and ergonomic issues can slow down production and lead to poor quality.
Traditional vertical presses often aren’t the right fit for long parts.
- Parts too long for vertical presses
- Alignment difficulty during pressing
- Ergonomic issues / awkward handling
A HORIZONTAL APPROACH
TO PRESS-FIT ASSEMBLY
Our horizontal assembly press is designed to improve alignment, control and ease of use when working with long or difficult parts.
IMPROVE
ALIGNMENT
SAVE TIME &
INCREASE OUTPUT
INCREASE
CONSISTENCY
Common Applications: End Cap Installation | Bearing Press Fits | Shaft Assembly | Long Component Assembly.
WHEN VERTICAL PRESSING
DOESN'T WORK
Long parts, awkward assemblies, and ergonomic issues can slow down production and lead to poor quality.
Traditional vertical presses often aren’t the right fit for long parts.
- Parts too long for vertical presses
- Alignment difficulty during pressing
- Ergonomic issues / awkward handling
A HORIZONTAL APPROACH
TO PRESS-FIT ASSEMBLY
IMPROVE
ALIGNMENT
SAVE TIME &
INCREASE OUTPUT
INCREASE
CONSISTENCY
Common Applications: End Cap Installation | Bearing Press Fits | Shaft Assembly | Long Component Assembly.

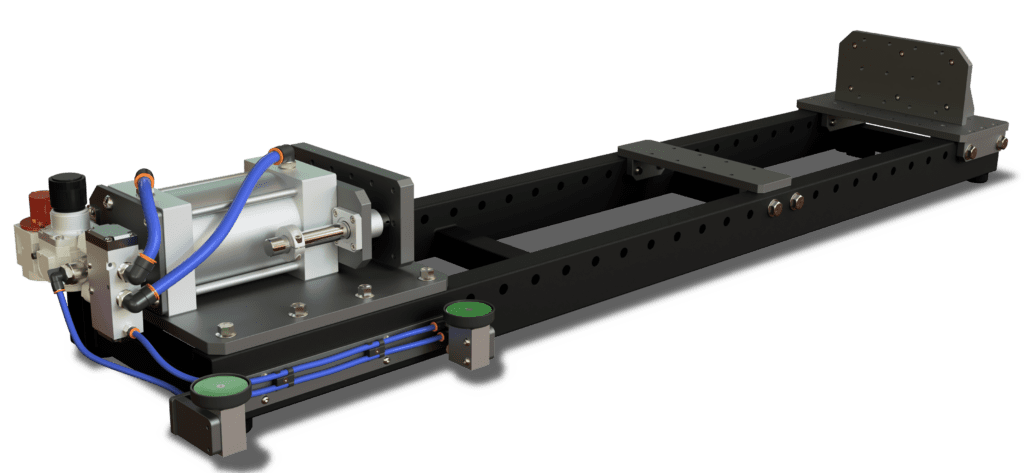

STANDARD HORIZONTAL ASSEMBLY PRESS
A configurable press system designed for a wide range of assembly and press fit applications.
CONFIGURATIONS & OPTIONS
- Pneumatic (standard) or hydraulic actuation
- Customizable length to fit your application
- Multiple stroke lengths options with adjustable stroke limiter
- Range of force outputs depending on configuration
- Optional mid-support fixture assemblies
In-house design & build services are also available for custom fixturing to locate and secure your parts on our standard press system.
Show us your application, and we’ll design the tooling to match.
| SPECIFICATIONS | |
|---|---|
Actuation Options |
Pneumatic or Hydraulic |
Force Range |
Pneumatic: 200 – 2800 lbf. Hydraulic: 1-5 ton |
Standard Lengths |
24″, 48″, 72″ (Custom Lengths Available) |
Tooling Interface |
Press Plate & End Plate with Tapped Hole Grid |
Safety Features |
Two-Hand Anti Tie Down Palm Buttons |
Mounting |
Benchtop (Optional Stand Available) |
Frame Construction |
Powder Coated Steel |
Country of Origin |
Designed & Built in the USA |

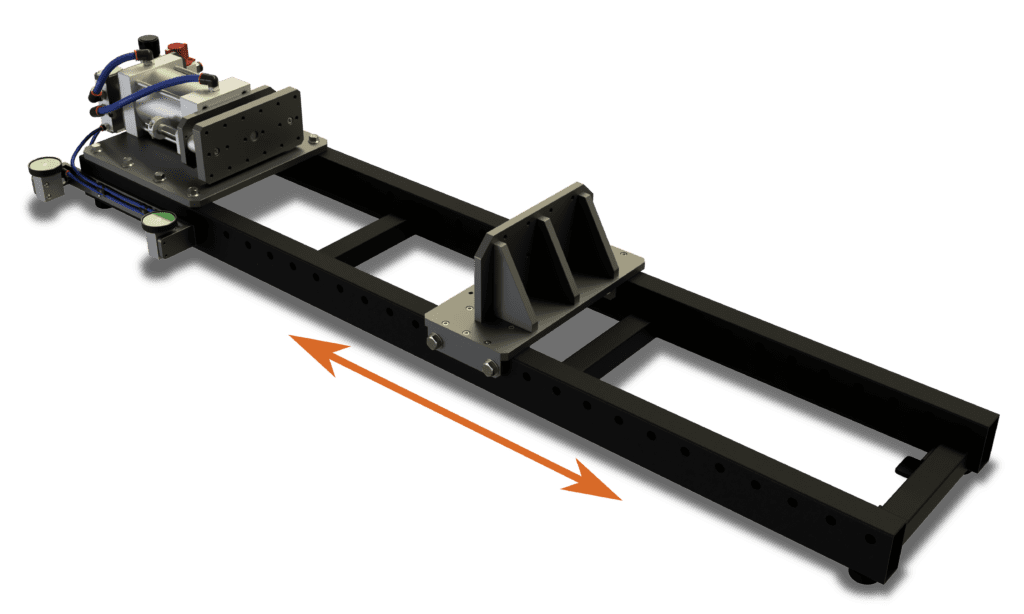

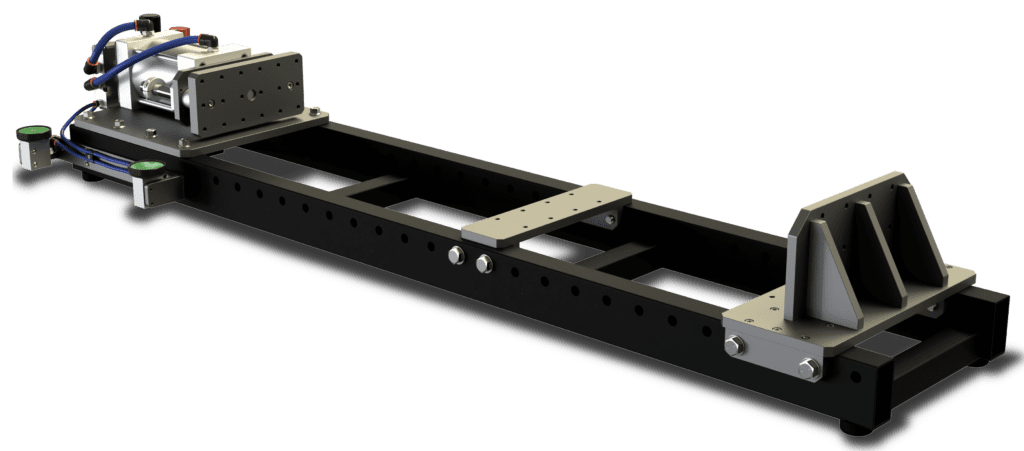

Adjustable Position End Stop Assembly
Provides a rigid & repeatable backstop for workpieces of varying lengths.

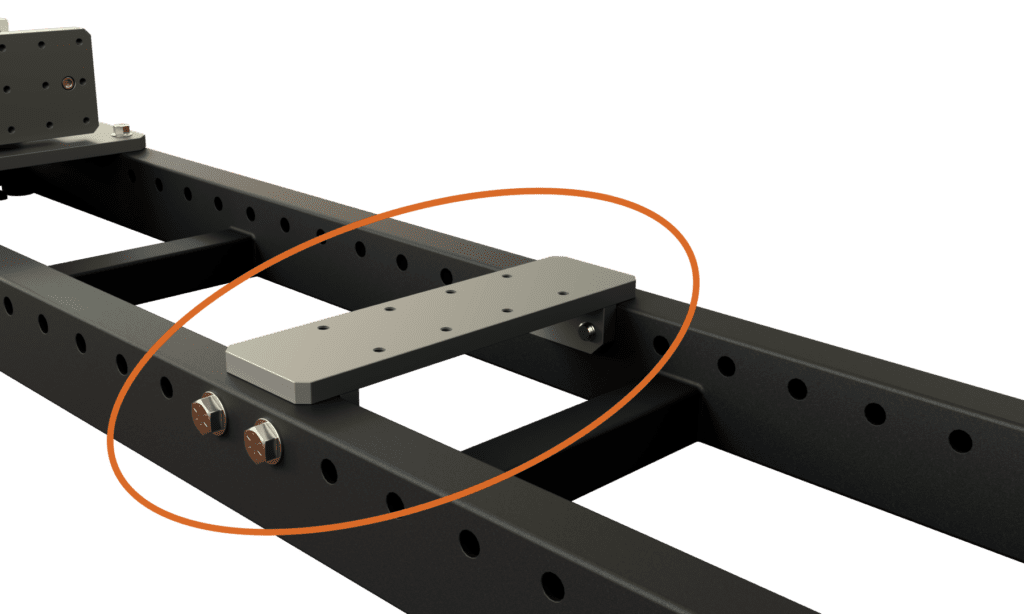

Optional Mid-Support Fixture Assembly
Additional supports can be added to hold workpieces or mount alignment tooling.

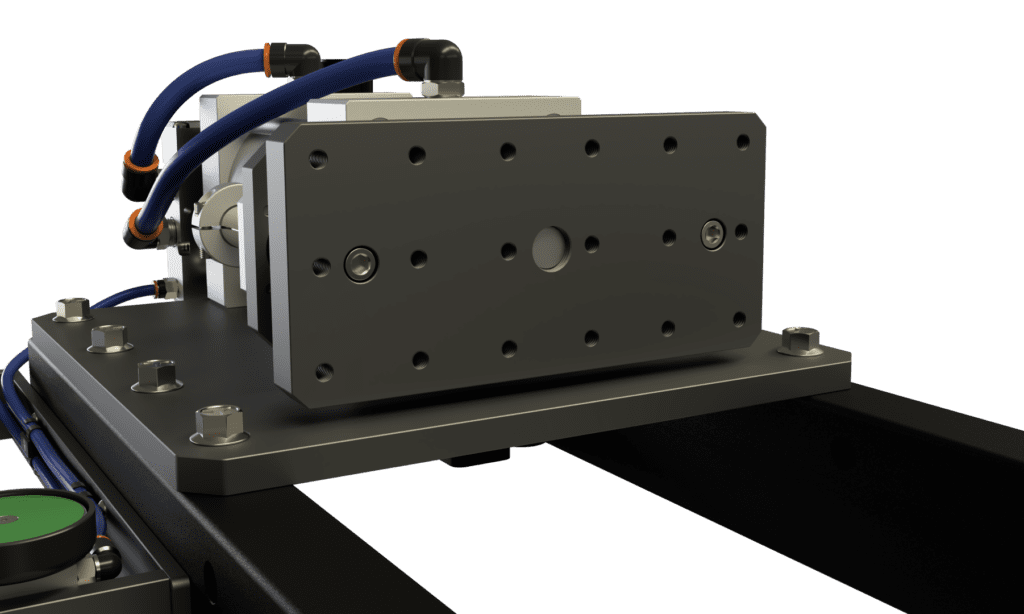

Press Plate with Tapped Fixture Holes
Precision machined hole pattern for mounting custom tooling & fixtures.

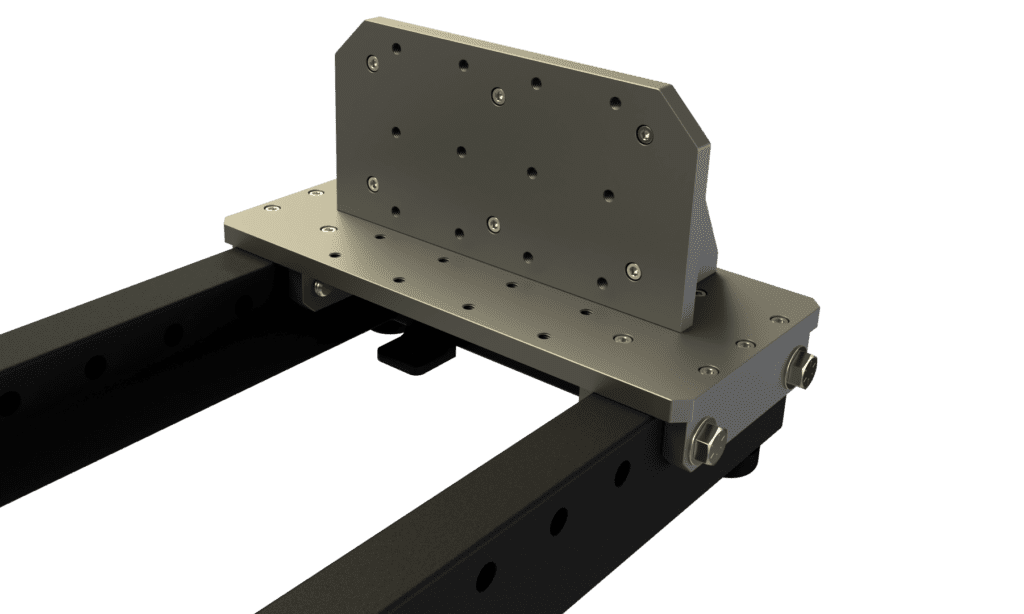

End Stop with Tapped Fixture Holes
Includes a grid of tapped holes on the horizontal and vertical surfaces.
Adjustable Position End Stop Assembly
Provides a rigid & repeatable backstop for workpieces of varying lengths.
Optional Mid-Support Fixture Assembly
Additional supports can be added to hold workpieces or mount alignment tooling.
Press Plate with Tapped Fixture Holes
Precision machined hole pattern for mounting custom tooling & fixtures.
End Stop with Tapped Fixture Holes
Includes a grid of tapped holes on the horizontal and vertical surfaces.
HAVE AN ASSEMBLY CHALLENGE?
Share a few details about your application and we will work with you to determine the right press setup for your needs.
We’ll review your application and follow up with recommended options and next steps.
No commitment required.
Pricing varies depending on configuration, optional accessories or other requirements. Contact us for a detailed quote.
NEED SOMETHING MORE SPECIFIC?
WE ALSO DESIGN AND BUILD FULLY CUSTOM PRESS SOLUTIONS.

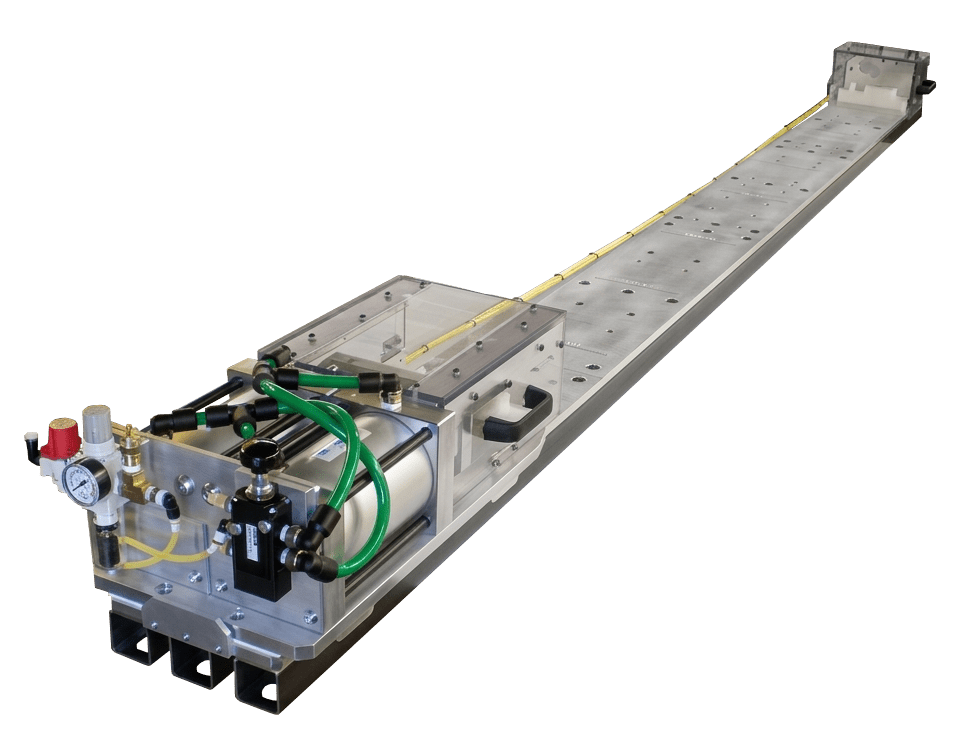

In addition to our standard horizontal assembly press, we design and build custom press systems tailored to specific parts, processes and production requirements.
- Application-specific fixturing and tooling
- Higher force requirements
- Custom sizes, layouts and auxiliary equipment integration
- Mobile / Portable press solutions
- Real-time force meters and other sensors
Fill out the form above to start a conversation about your custom press design.
